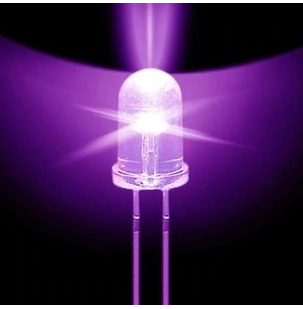

100kpl Super Kirkkaita U/V LED Valoja

Tekniset tiedot:
Diameter: 5mm
Emitted color: UV/ Purple
Lens Colour : Water Clear
Wave Length:395~400nm
Forward Voltage (V) : 3.2 ~ 3.8
Reverse Current (uA) : Luminous Intensity Typ Iv (mcd) : Average in 2000
Life Rating : 100,000 Hours
Viewing Angle : 20 ~ 25 Degree
Absolute Maximum Ratings (Ta=25°C)
Max Power Dissipation : 80mw
Max Continuous Forward Current : 30mA
Max Peak Forward Current : 75mA
Reverse Voltage : 5~6V
Lead Soldering Temperature : 240°C (Operating Temperature Range : -25°C ~ +85°C
Preservative Temperature Range : -30°C ~ +100°C
