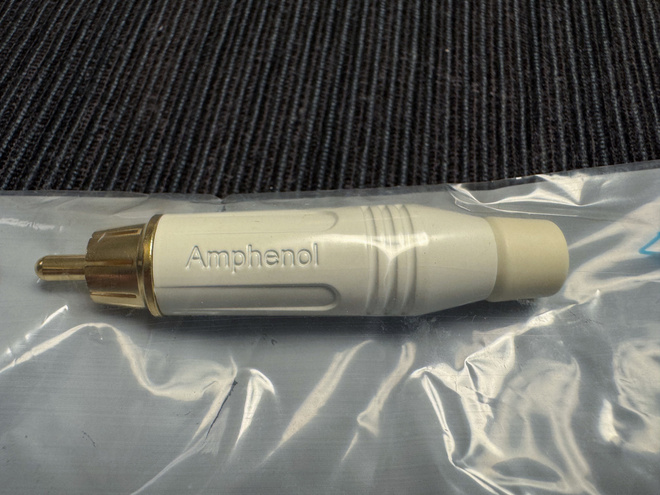

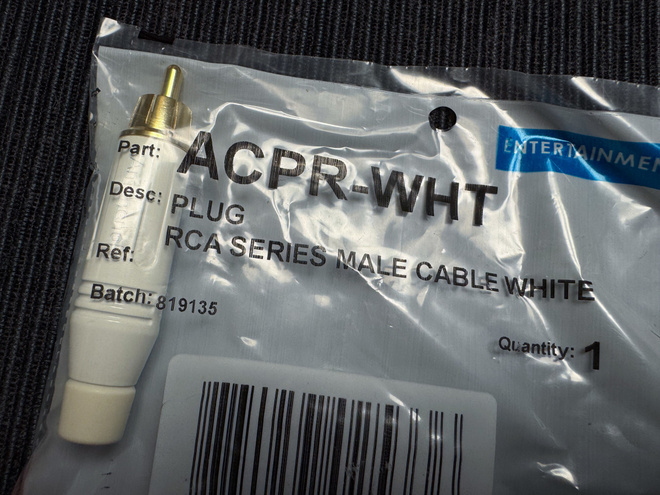

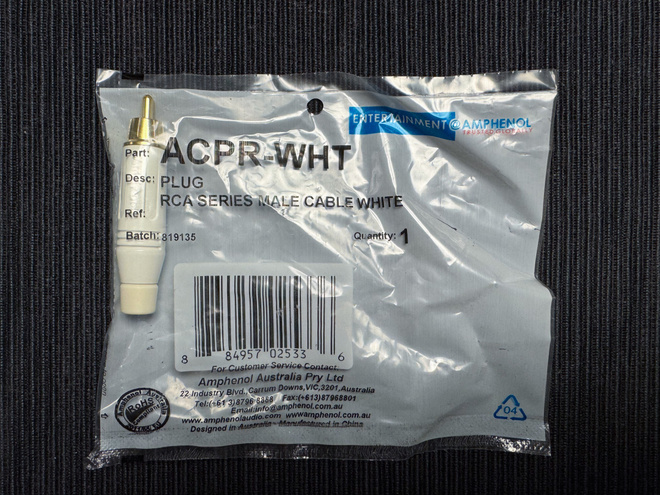

Amphenol ACPR-WHT RCA male cable connector

Uusi. Käyttämätön.

SPECIFICATIONS:
Positions: 2
Finish: White
Gender: Male
Contact Plating: Gold
IP Rating: IP40
Current Carrying Capacity: 10A (depending on mating connector)
Termination: Solder
Max Wire Gauge: 14AWG - 2.5mm²
Flammability Rating: UL94V-0
Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
Typical Contact Resistance: Insulation Resistance: 10³ Meg ? after Damp Heat Test
Operating Temperature: -25°C to + 75°C (-13°F to 167°F)
Insertion and Withdrawal Force: > 10N - Cable OD Range: 3mm to 7mm (0.11" to 0.275")
Mating Cycles: 500
Housing Material: Diecast Zinc Alloy EZDA No.3
Application(s): Audio & Lighting
