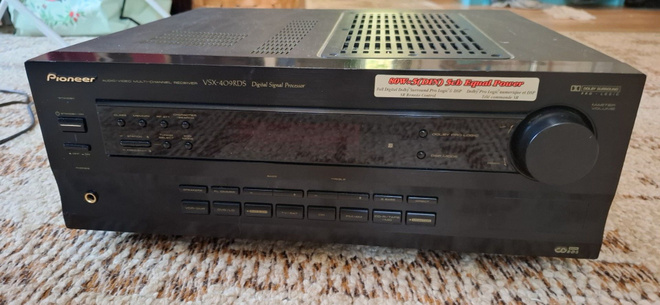

Pioneer VSX-409RDS AV-Viritinvahvistin

Valot syttyy, kaukosäädin (SR remote control) puuttuu.

Laitoin varmuudenvuoksi luokitukseksi heikko, koska kunnosta ei ole tarkempaa muistikuvaa kuin että käytin tätä tilapäisesti 10v sitten.

Tekniset tiedot:

• Manufacturer: Pioneer

• Model: VSX-409 RDS

• Type: A/V receiver

• Years of manufacture: 1999 - 2002

• Color: Black

• Remote control: yes

• Dimensions: 420 x 158 x 391 mm (WxHxD)

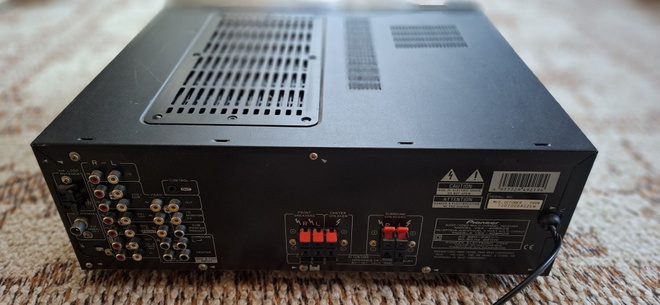

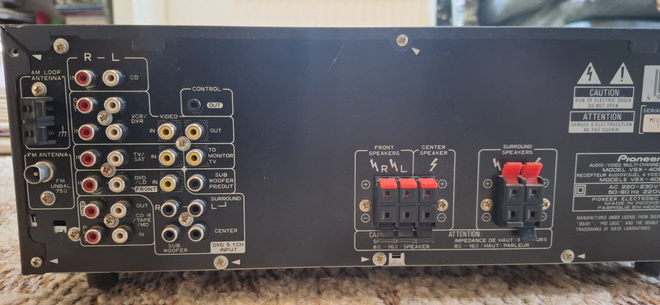

Connections

• Connection type 4 x Audio Line-In ( RCA-Phono x 2 ) - rear side

• 2 x Audio Line-Out ( RCA-Phono x 2 ) - rear side

• 1 x 5.1 channel audio line-in ( RCA phono x 6 ) - rear panel

• 1 x screen output ( RCA phono ) - rear panel

• 1 x composite video output ( RCA phono ) - rear panel

3 x composite video input ( RCA phono ) - rear panel

• Input impedance 47 kOhm

• Input sensitivity 200 mV

• Antenna Form Factor Loop AM / Wire FM

• 1 x subwoofer output ( RCA phono ) - rear panel

• 4 x output for front speakers ( Click-Fit x 2 ) - rear panel

• 1 x output for centre speaker ( Click-Fit x 2 ) - rear panel

• 2 x output for rear speakers ( Click-Fit x 2 ) - rear panel

Technical Data

Amplifier

• Digital Sound Processor (DSP) Yes

• DSP Standard Number 10

• Surround system class 5.1 channel

• Frequency bandwidth 5 - 100000 Hz

• Signal to noise ratio 88 dB

• Amplifier Output Details

• 80 watts - 8 ohms - at 1 kHz - THD 0.9% - 1 *channel/channels ( center )

• 80 watts - 8 ohms - at 1 kHz - THD 0.9% - 2 channel/channels ( front )

• 80 Watt - 8 Ohm - at 1 kHz - THD 0.9% - 2 channel/channels ( rear )

• Bass control Yes

• Treble control Yes

Tuner

• Type Radio - AM/FM - Digital Radio Tuner.

• Response Bandwidth 30 - 15000 Hz

• Signal to noise ratio 58 dB

• Further data at "Hifi Engine": [1]

Special Features

• Display fluorescent display

• Sound output mode Surround Sound

• Built-in decoder Dolby Pro Logic
