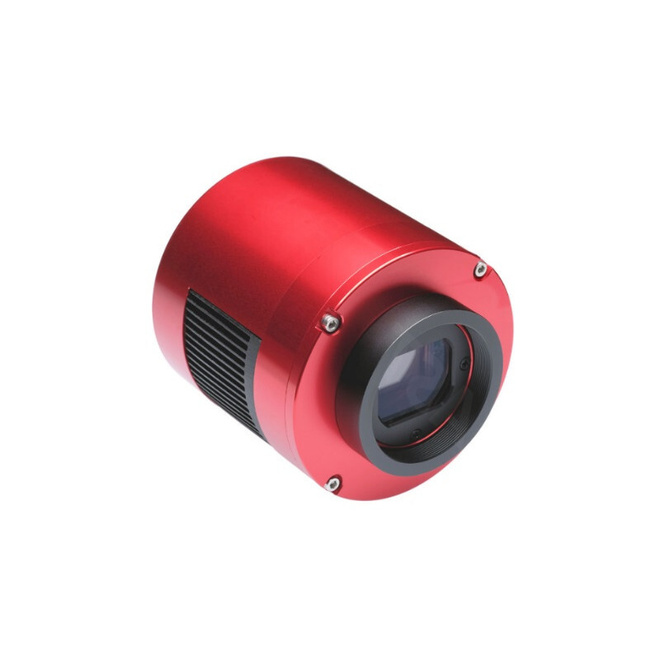

ZWO ASI1600MM PRO mono

Myytävänä tähtivalokuvauksen klassikkokamera!

Kyseessä yksi astrokuvaukden tunnetuimmista kameroista.

Kamera on käytetty, mutta täydin toimiva ja toimitetaan alkuperäisessä pakkauksessa.

Minulla on myynnissä myös valtava määärä muuta ZWOn astroluvauslditteistoa ((OAG, EFW, EAF...). Kysy jos etsit joyain tietyyä.

Kameran tekniset tiedot:

Cooled black and white camera for demanding astrophotographers!

A modern Panasonic CMOS sensor is used, which convinces with its very high sensitivity and very low noise at the same time.

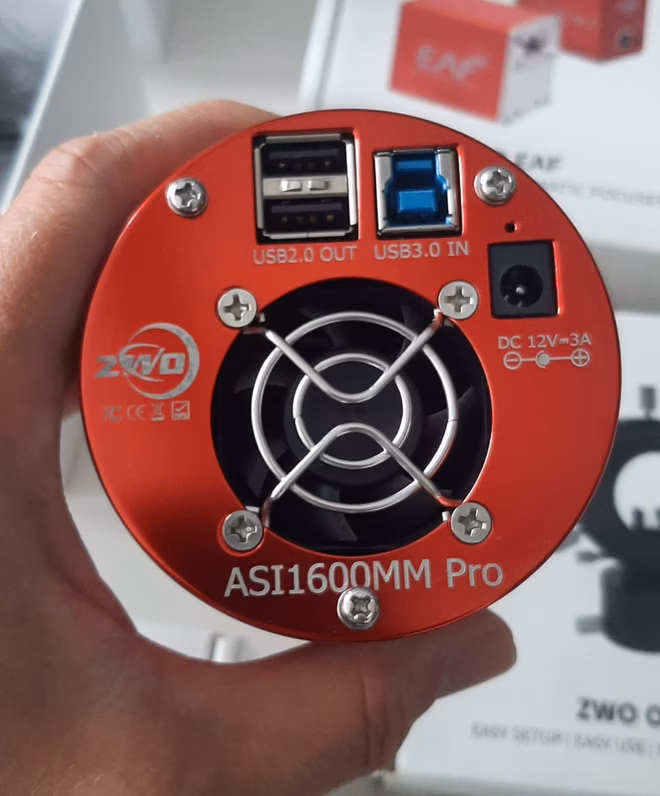

• USB 3.0 for a fast download - can also be operated with USB 2.0

• DDR memory buffer 256 MB for stable data transfer with USB2.0 - prevents amplifier glowing.

• Powerful Peltier cooling up to 45 ° C under ambient conditions

• Distance T2 connection thread (internal thread) to the camera sensor: 17.5 mm

• High sensitivity - QE over 60% - ideal astronomy camera for faint objects

Application areas of the camera:

• DeepSky images (nebulae and galaxies): Due to the high sensitivity, nebulae and galaxies are visible after only a few seconds. The camera can be cooled to up to 45°C under ambient conditions. As a result, the already low noise is further reduced. By raising the GAIN (Comparable to the ISO setting for digital SLR cameras), you can reduce the exposure time to less than 30 seconds. Effects due to inaccuracies of the tracking are thus switched off.

• Lunar and planetary images: Extremely short exposure times due to high sensitivity. Due to the high resolution of the sensor many details can be reproduced even with a shorter telescope focal length. Video astronomy is also possible.

DDR memory buffer is the main difference between ASI “Cool” and “Pro” cameras: ASI1600 Pro camera includes one 256MB DDR3 memory buffer to help data transfer more stable and no amp-glow issue which is caused by the slow speed data transfer during reading out under USB2.0 Port.

The sensor of the camera is protected by an AR clear glass filter. This grants a full passage also in infrared. If the IR light needs to be blocked, an IR cut filter is needed.

Supported resolutions and frame rates (fps = frames per second):

12Bit ADC

• 4656×3520 14.7fps

• 3840×2160 23.1fps

• 1920×1680 32.9fps

• 1280×960 47.1fps

• 640×480 80.4fps

• 320×240 124.4fps

10Bit ADC

• 4656×3520 23fps

• 3840×2160 36.2fps

• 1920×1680 57.7fps

• 1280×960 73.6fps

• 640×480 125.7fps

• 320×240 192.4fps

Cooled ZWO ASI cameras need a 12V power supply, If you don’t have one, please check the recommended accessories for a suitable power adapter.

External power supplies are needed for all ASl-cooled cameras. We recommend you use a 12V@3A~5A DC adapter (D5.5×2.1mm, center pole positive) or a lithium battery with 11-14V to power the camera. Be aware that using a power supply out of this voltage range will probably lead to irreparable damage to the camera.

Specifications

Capacity

Sensor type

CMOS Chip (Panasonic MN34230)

Megapixel

16

Resolution Photograph (Pixel)

4656 x 3520

Pixel size

3,8

Interfaces

USB 3.0 & USB 2.0

Bit depth (Bit)

12

Active cooling

yes

Connection (to the telescope)

1,25" & T2

Colour camera

no

Operating temperature

(-5) - (+45)

Max. exposure time (min)

30

Min. exposure time

32 µs

Images per second

23 (at full resolution)

Full Well Capacity

20.000

Flange focal distance (mm)

6,5

Reading noise

1,2

Cable length (m)

2

Supported operating systems

Windows, Mac, Linux

Quantal efficiency

60

Size of chip (mm)

17,7 x 13,4

Max. cooling difference below room temperature

45

Amperage (A)

2

Input voltage

12

Chip - Diagonal (mm)

22,2

buffer memory

256

Internal memory

DDR3 RAM
